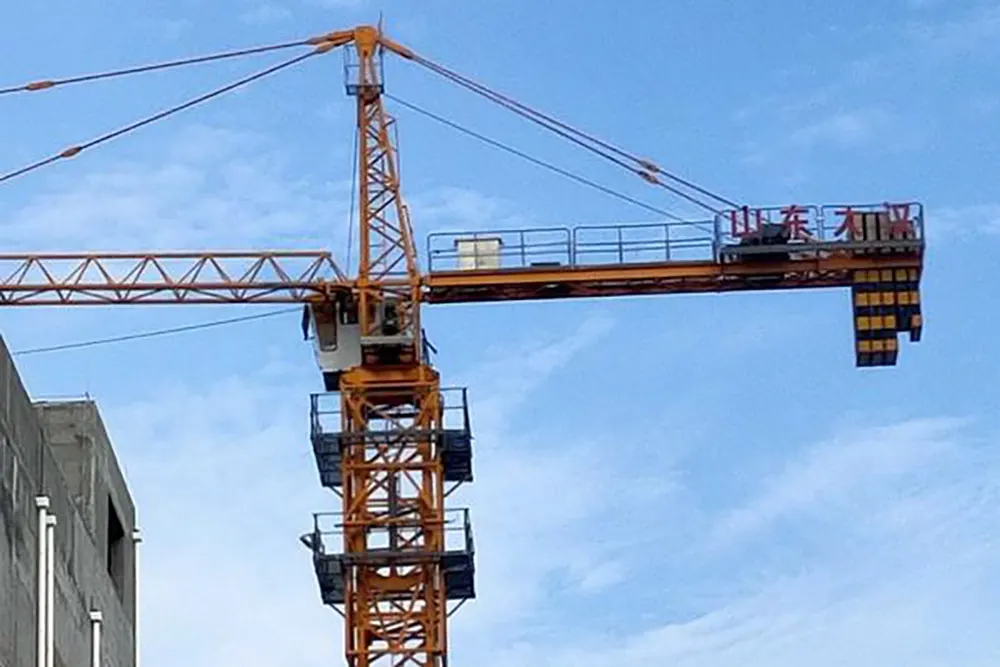

Used DAHAN Tower Crane For Sale 6513-6

$

Brand name: DAHAN


Maximum load: 10 tons


Mast section size: 2*2*3 meters


Condition: Used


Year: 2020


PDF Download

Advantages and Features
Technical Parameters

Reliable Construction:


Rugged Steel Structure: Made of high-strength steel, it provides high strength and rigidity. It can withstand heavy workloads and difficult construction conditions, ensuring its reliable operation even in the second-hand market. Its quality and durability allow users to use it with confidence.


Excellent Stability: Thanks to the well-designed base and tower, the crane has good stability, which reduces the risk of tipping over during operation. This is especially important in construction sites where a high degree of safety is required.


Good Loading Capacity:


Large Maximum Lifting Weight: The maximum lifting weight of this crane is 10 tons, which allows it to effectively lift heavy construction materials and structures. This greatly improves the efficiency of construction work and meets the needs of various construction projects.


Large Working Reach: The working radius of the crane is large enough to cover a large construction area. Thus, it can be used in large construction sites that require moving goods over long distances.


Convenient operation and maintenance:


Easy operation: The crane control system is simple and convenient to operate. The operator can easily control various functions of the crane, which improves its working efficiency and reduces the labor intensity of operation.


Easy maintenance: The crane design allows for easy maintenance and repair. The main components are easily accessible, making it easy to check and replace worn parts, reducing crane downtime and reducing maintenance costs.


Suitable for various construction sites:


Compact and maneuverable: The flat head makes the crane more compact, making it suitable for use on construction sites with limited space. It can easily maneuver in narrow spaces and between other construction structures, improving the efficiency of the construction site.


Suitable for group work with other cranes: When working on large construction projects, it is often necessary to use several cranes at the same time. The DH 6513-10 tower crane, thanks to its design, is well suited for group work with other cranes, ensuring safe and efficient teamwork.


Relatively low price compared to new equipment:


Economical for buyers: On the second-hand market, the price of this crane is usually lower than the cost of new similar equipment. This makes it an attractive option for construction companies that want to save on investment in construction equipment, but still get a functional and reliable crane.


Quick payback: Given its good performance characteristics and relatively low price, the crane can quickly pay for itself in the process of use, which is an important factor for buyers on the secondary market.


Basic information

Boom reach Башенные краны 6ез оголовка Device number
Brand name Dahan Model h6513-10
Maximum load 10 tons Arrow length 65 meters
Load at the end of the boom 1.3 tons State Used
Mast Section Size 2*2*3 meters year 2020 г.
Free position 60 meters Maximum Height 200 meters
Work environment 正常 working time 2 г.

Crane Appearance Inspection

hook
Items to See characteristic Validation Item characteristic Validation Item characteristic
Counterweights Cargo trolley Lifting frame
Counterweight Barrier Lifting Hook Crane Base Mechanism
Platform with counterweights Auxiliary Lifting mechanism
arrow ballast Lifting and frame platform
Lifting mechanism Swivel body Lifting frame booms
Upper section of the tower Swivel mechanism Standard Section
Front boom Operator's Cab Base Node
Mechanism for changing the departure Distribution Box

Note: This inspection mainly determines whether the appearance of the tower crane is deformed or damaged, etc. It only reflects the appearance and does not affect the structure.

General design characteristics of a tower crane

Inspection items Characteristics Inspection items Characteristics Inspection items Characteristics
Construction of counterweights Upper section of the tower Pumping station
Front boom① Rotary mechanism Cargo trolley
Front boom② Operator cabin Lifting hook
Front boom③ Ballast Lifting mechanism
Front boom④ Lifting frame Mechanism for changing reach
Front boom⑤ Standard section Rotary mechanism
Front boom⑥ Amplification section Lifting device
Front boom⑦ Basic section

Note: This inspection determines the overall structural characteristics of the tower crane, as well as the presence of welds, deformations, corrosion, etc., affecting the stability of the entire structure.

Control cabinet inspection

Inspection items Characteristics Inspection items Characteristics Inspection items Characteristics
Main power switch Humidity temperature controller Circuit breaker with frequency conversion
Main contactor High and low voltage relay Frequency converter
Safety switch Phase rotation relay AC contactor
Intermediate relay Isolation transformer Emergency switch
Cabin power switch Power switch for electrical panel Programmable controller
Sound switch Voltmeter Limit relay

Note: This inspection determines the configuration and normal operation of electronic switch cabinet components.

Запасные части и аксессуары

Inspection items Characteristics Inspection items Characteristics Inspection items Characteristics
Counterweights Cargo trolley Lifting frame
Counterweight barriers Lifting hook Crane base mechanism
Platform with counterweights Auxiliary hook Lifting device
Crane boom Ballast Lifting frame platform
Lifting mechanism Rotary mechanism Lift frame guards
tower head rotating mechanism Standards section
Upper section of the tower Rotary mechanism Standard section
Front boom Operator cabin Basic section
Mechanism for changing the reach Distribution box

Note: This inspection checks the number of tower crane accessories, including but not limited to pins, platform railings, screws, etc.

Grand total

Checking structural characteristics Normal state
Appearance Traces of normal use
Checking electrical components Traces of normal use
Spare parts and accessories Integral
Conclusion Traces of normal use
